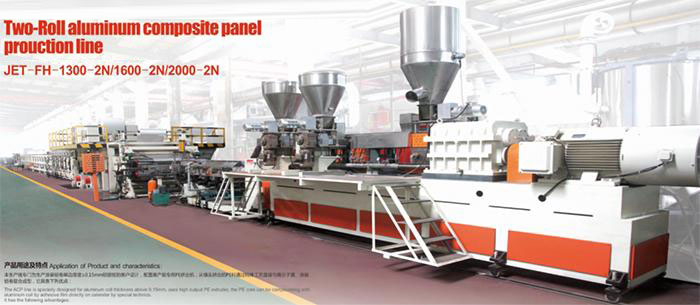

ACP Panel, Aluminum Composite Panel Production Line (Two Roll Calendering)

Product details

The aluminum composite panel production line(four extruders) is specially designed for aluminum coil of which the unilateral thickness is no less than 0.15mm. With special high output PE extruder, the PE core material can directly compound with coated aluminum coil and polymer film by special technics.

1. High capacity and full range of specifications
2. The thickness of raw material aluminum coil is no less than 0.15mm, suitable for high-end products
3. The aluminum composite panel is of straightness, appearance and high peeling strength.
4. Energy and PE material saving
5. Suitable for quantity production of the same size aluminum composite panel

Parameters of optional models:
Model JET-FH-1300-2N JET-FH-1600-2N JET-FH-2000-2N
Diameter of screw(mm) Φ180 or Φ190 Φ85/188 or Φ190 Φ95 Twin-screw or Φ95 Twin-screw+Φ200
Center height(mm) 1100 1100 1100
Production speed(m/min) 0-8 0-8 0-10
Power(kw/h) 200 220 320
Width of product(mm) 800-1300 800-1600 800-2000
Dimension(mm) 60000×3600×3000 60000×4000×3500 80000×4200×3500

In addition to the models above, customized model can be supplied according to customers’ requirement.

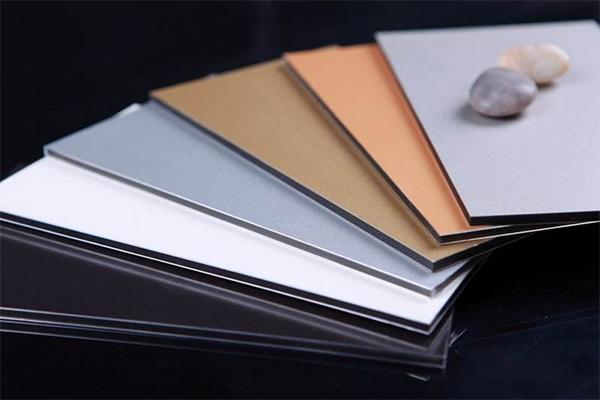

Parameters of composite panel:
Composite panel:

Width: 800-1300mm, 800-1600mm or 800-2000mm
Thickness: 3~8mm
Length: set by production requirements

Application of composite panel:

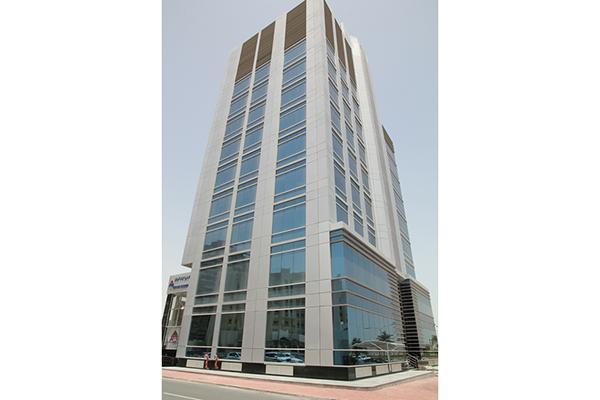

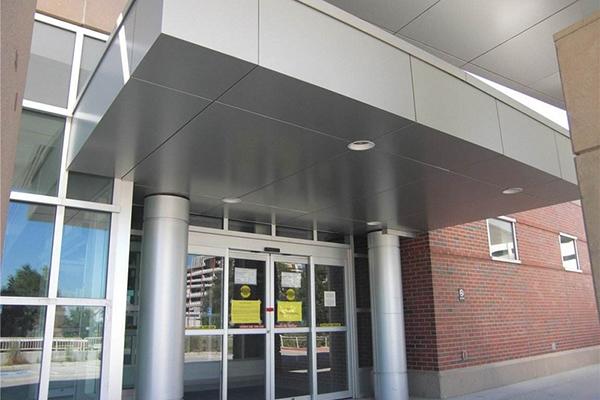

The aluminum composite panel so produced can be used extensively in various architectural decorations, including exterior wall of building, facade decoration, ceiling, column, furniture, elevator, storefront, billboard, bus, train, partition wall material for aircraft and ships, as well as outer box of equipment and instruments.

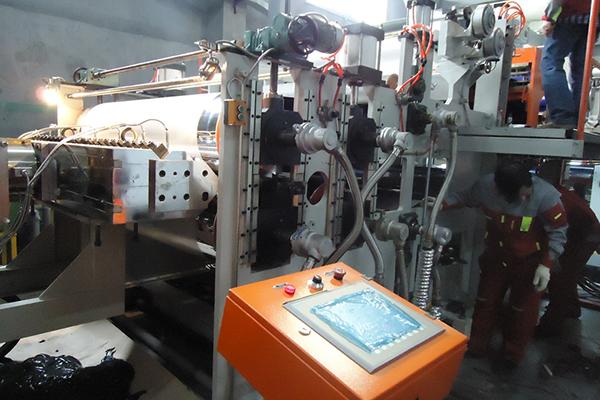

Equipment 1:
Carried by feeder to the barrel screw, the PE material is to be melted at high temperature and extruded effectively. After that, the thickness of core panel will be adjusted by the T-die.

Equipment 2:
The calender is for cold press molding of the panel, to provide PE core material for subsequent process.

Equipment 3:

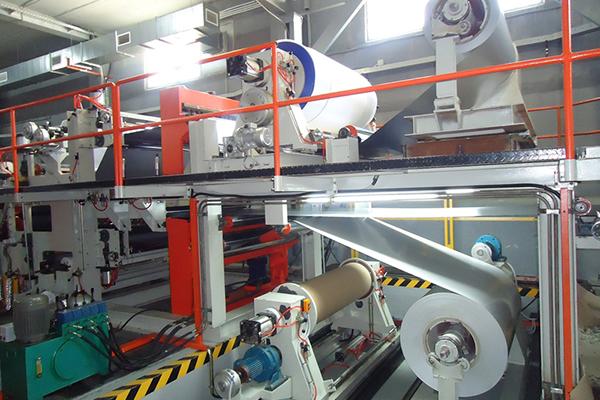

Uncoiling machine
The color coated aluminum coil will be delivered stably to compound machine unit, through single wall movable uncoiling machine with upper and lower sliding blocks together with high-precision magnetic powder tension control system, with required tension for continuous production guaranteed.

Equipment 4:

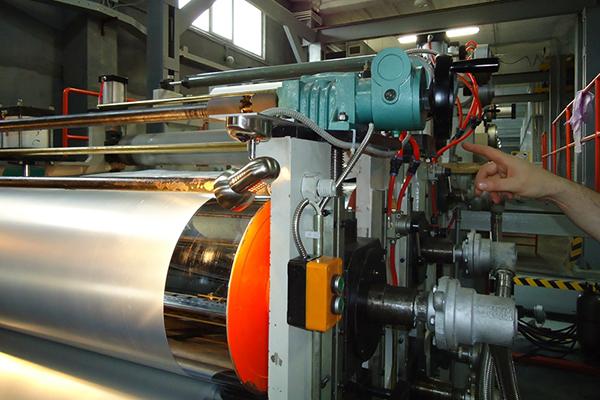

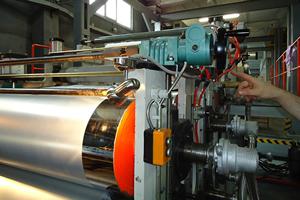

Compound machine unit
Pre compound PE core panel, upper and lower aluminum coils in the first and second sets of compound machine unit at proper temperature. After that, they will be processed by hot press rolling and finish rolling.

Equipment 5:
Cooling unit
After through compound machine unit, the composite panel is cooled by the air-quantity adjustable air-cooled cooling unit, guaranteeing it is cooled to normal temperature in a stable curve manner. Meanwhile, temperature requirement of covering with protective film later is also satisfied.

Equipment 6:

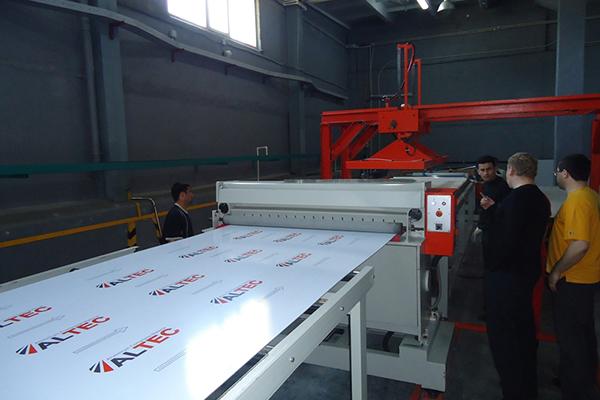

Cut-to-length sensor
The cut-to-length sensor generates a feedback signal after the panel is cooled, flattened and trimmed, instructing the shearer automatically clamps it to move synchronously in the conveying direction. And the shear will automatically return to its original position after the panel is cut off. The dimensional precision of shearing panel is guaranteed in this way.
